COMBILIFT 542

The combination of stacking and moving together with a pit arrangement provides additional height in the top level - parking space for vans, SUVs is provided.

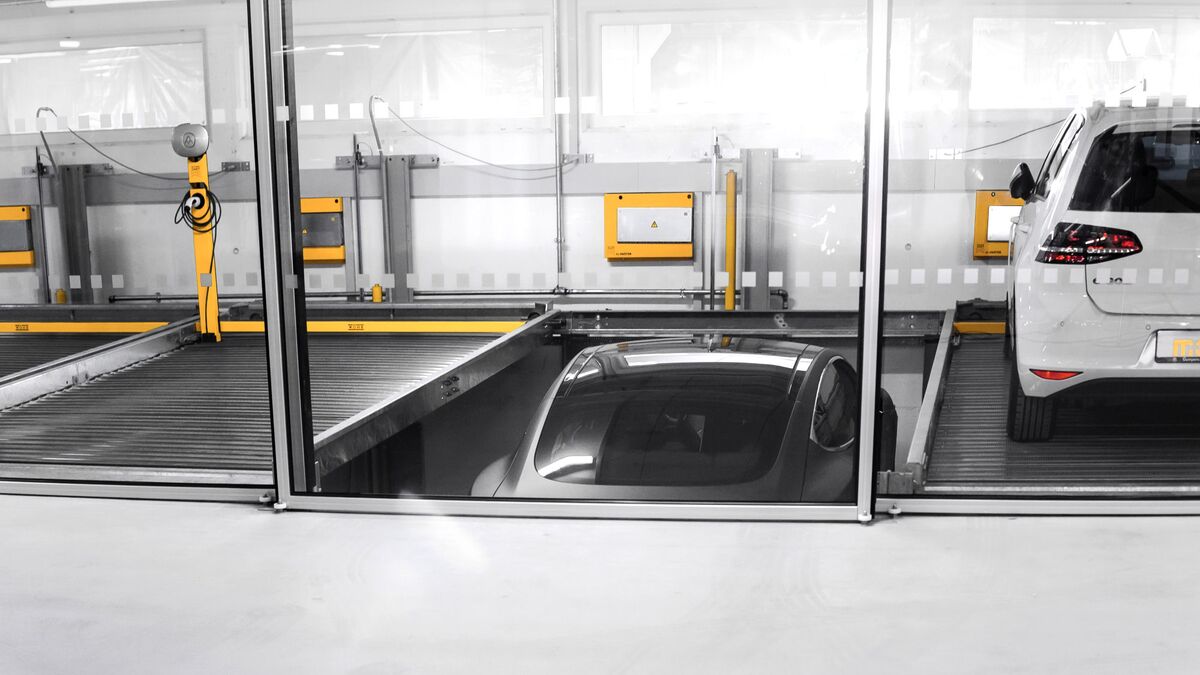

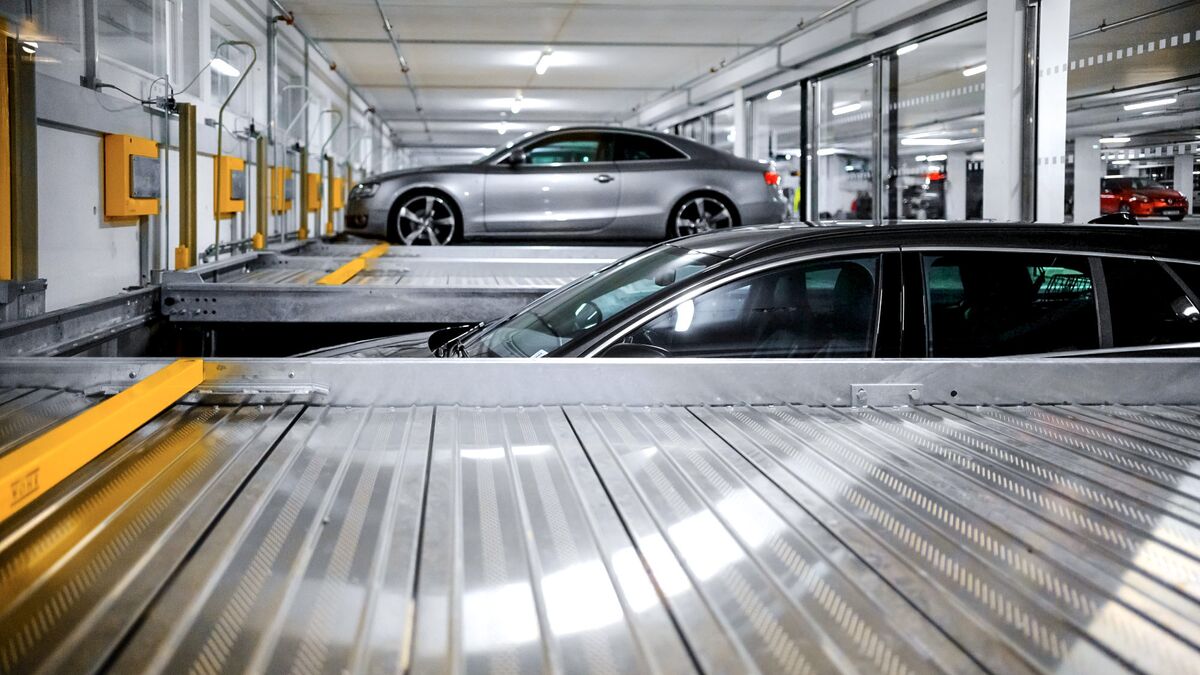

Independent parking in 2 levels above each other with a pit, suitable for when headroom is restricted. With a height of only 2,20 m as available for conventional parking garages, Combilift 542 provides 2 parking levels above each other. This system has Always 1 platform less at the entrance level. When requesting a lower level platform, the upper level platforms will move laterally until there is an empty space into which the appropriate platform is raised.

Specification

Platform width up to 300 cm
Platform load 2,000 kg and 2,600 kg

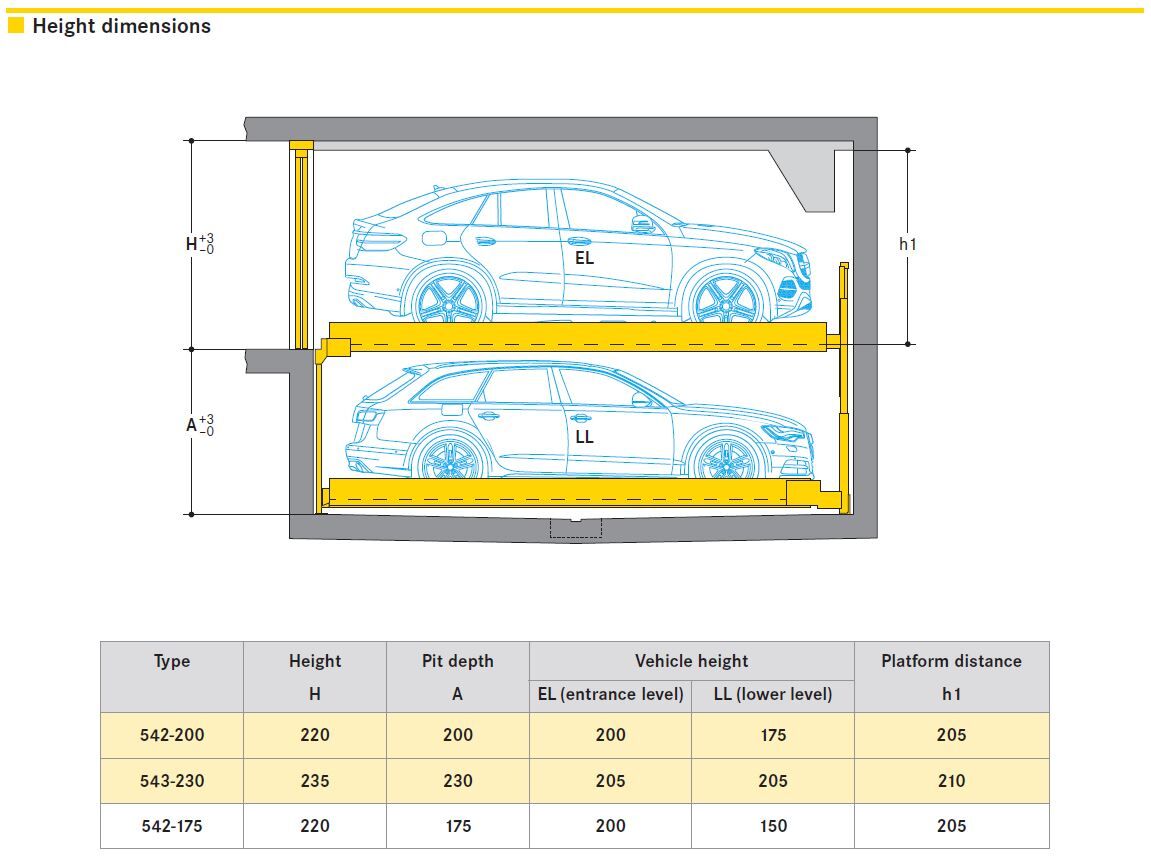

Car height 150 - 205 cm, according to requirements
Allows SUVs at upper places with a restricted headroom of 2,20 m

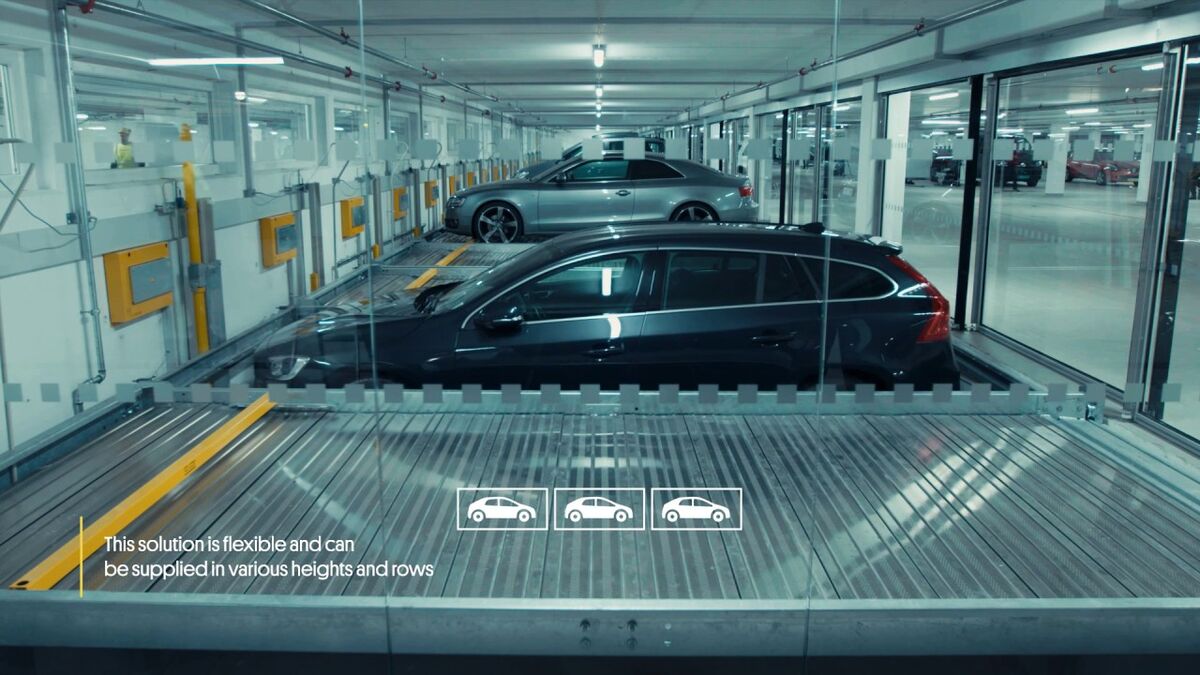

Variable arrangement of 2 - 10 grids beside one another
Combination of stacking and moving cars closer together
Independent parking in 2 levels above each other
Multi size options corresponding to car heights, car widhts and platform loadings

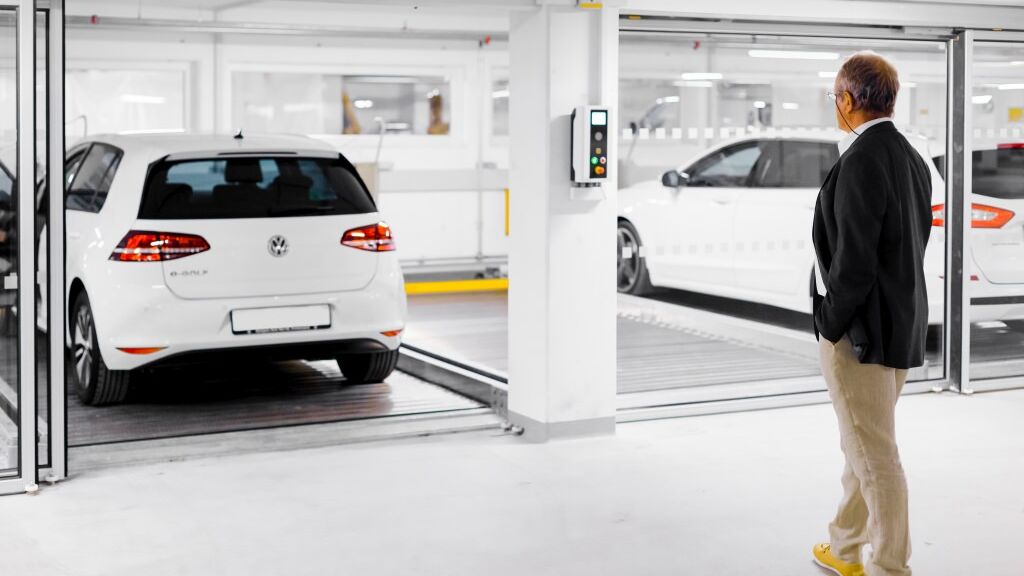

Easy operation and parking comfort

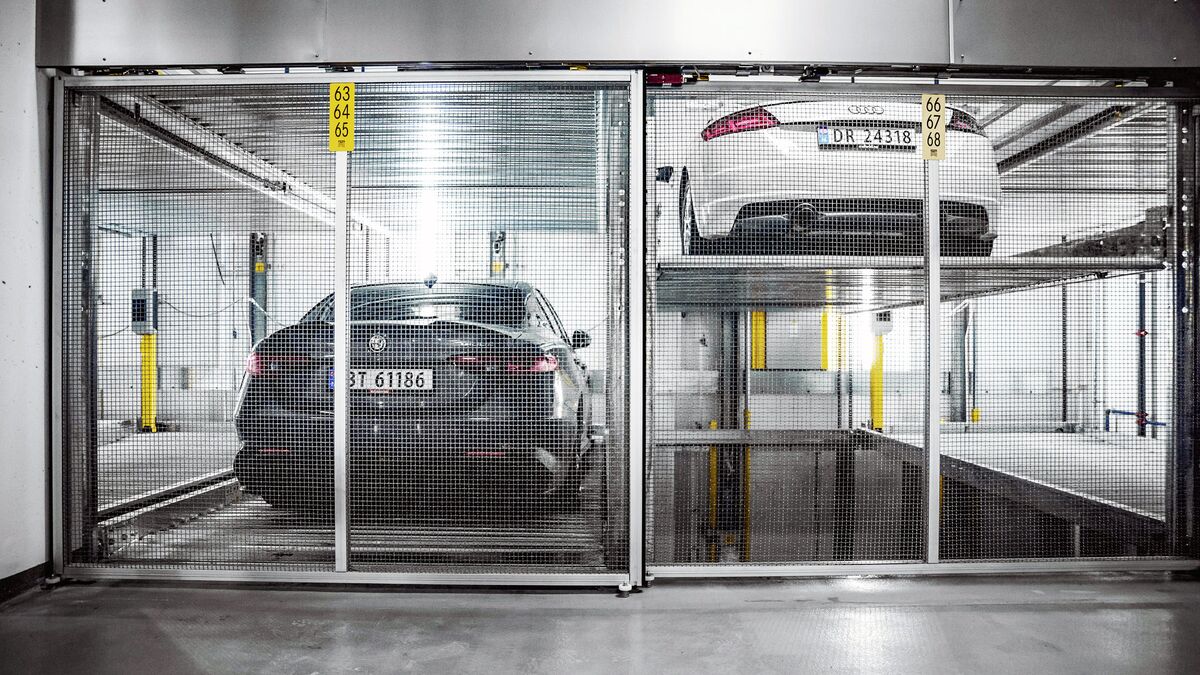

Vehicles are parked behind theft-proof safety gates
High level of operating and functional safety (German TÜV tested, CE compliant)

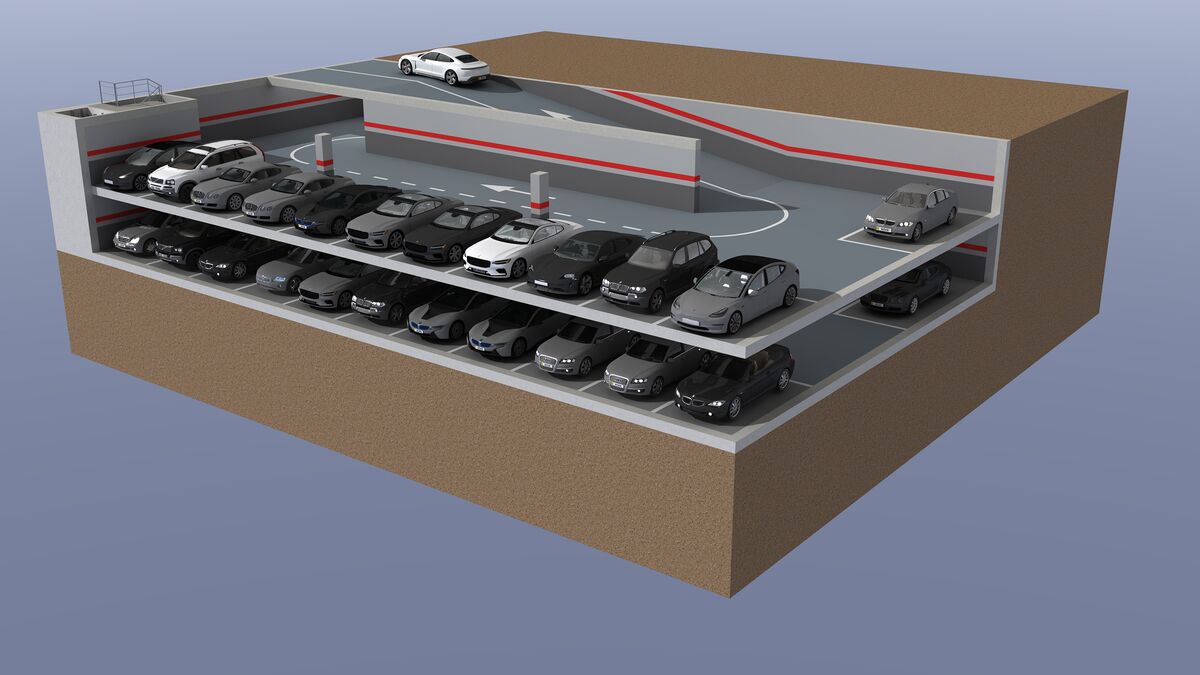

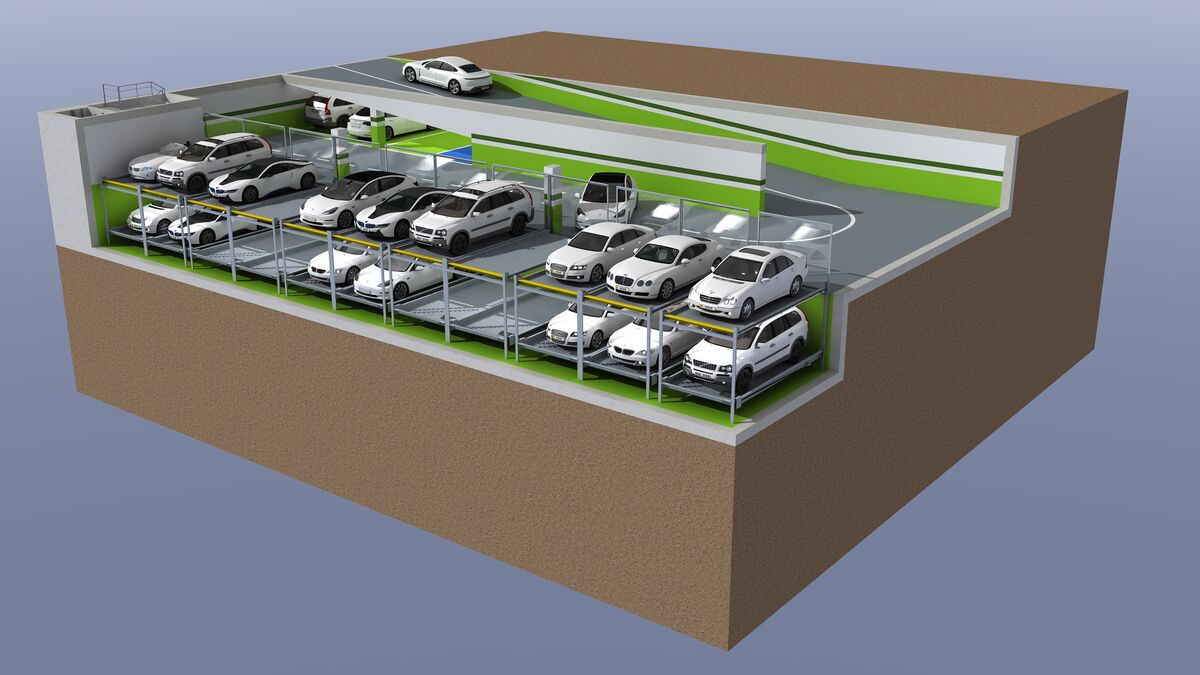

Vergleich mit Konventioneller Tiefgarage
